DEZ GATE DISINFECTION BOOTHS

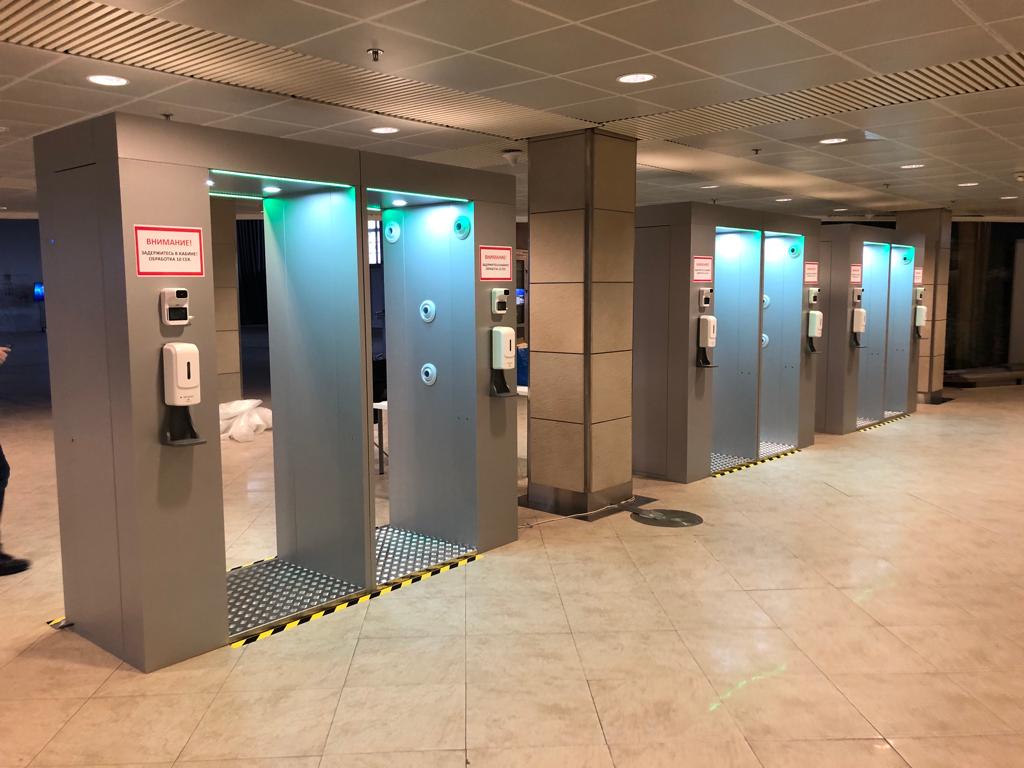

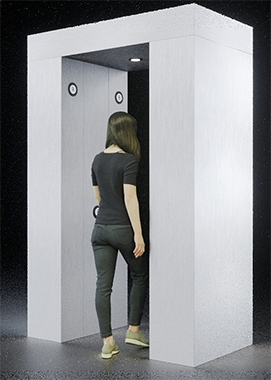

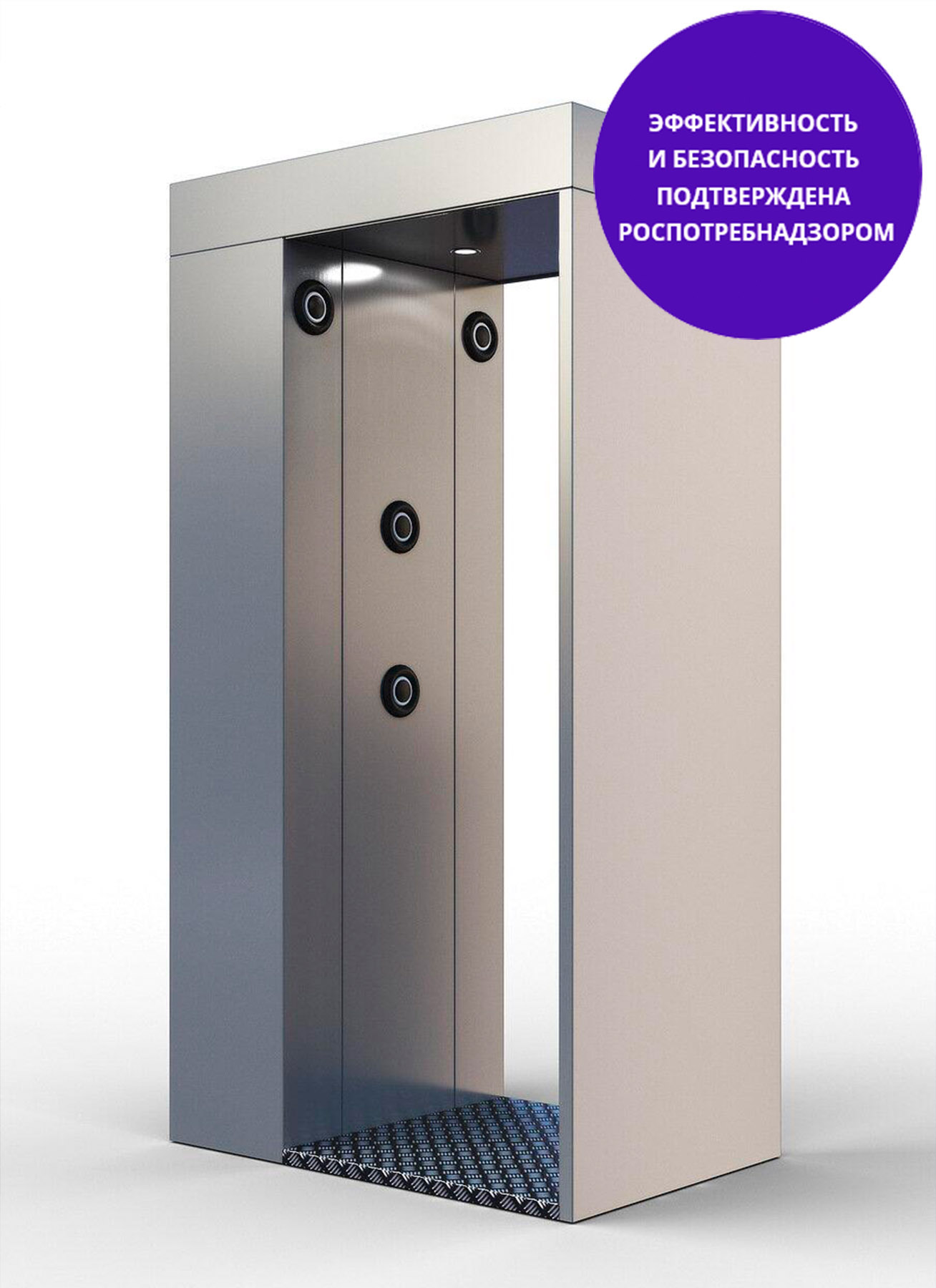

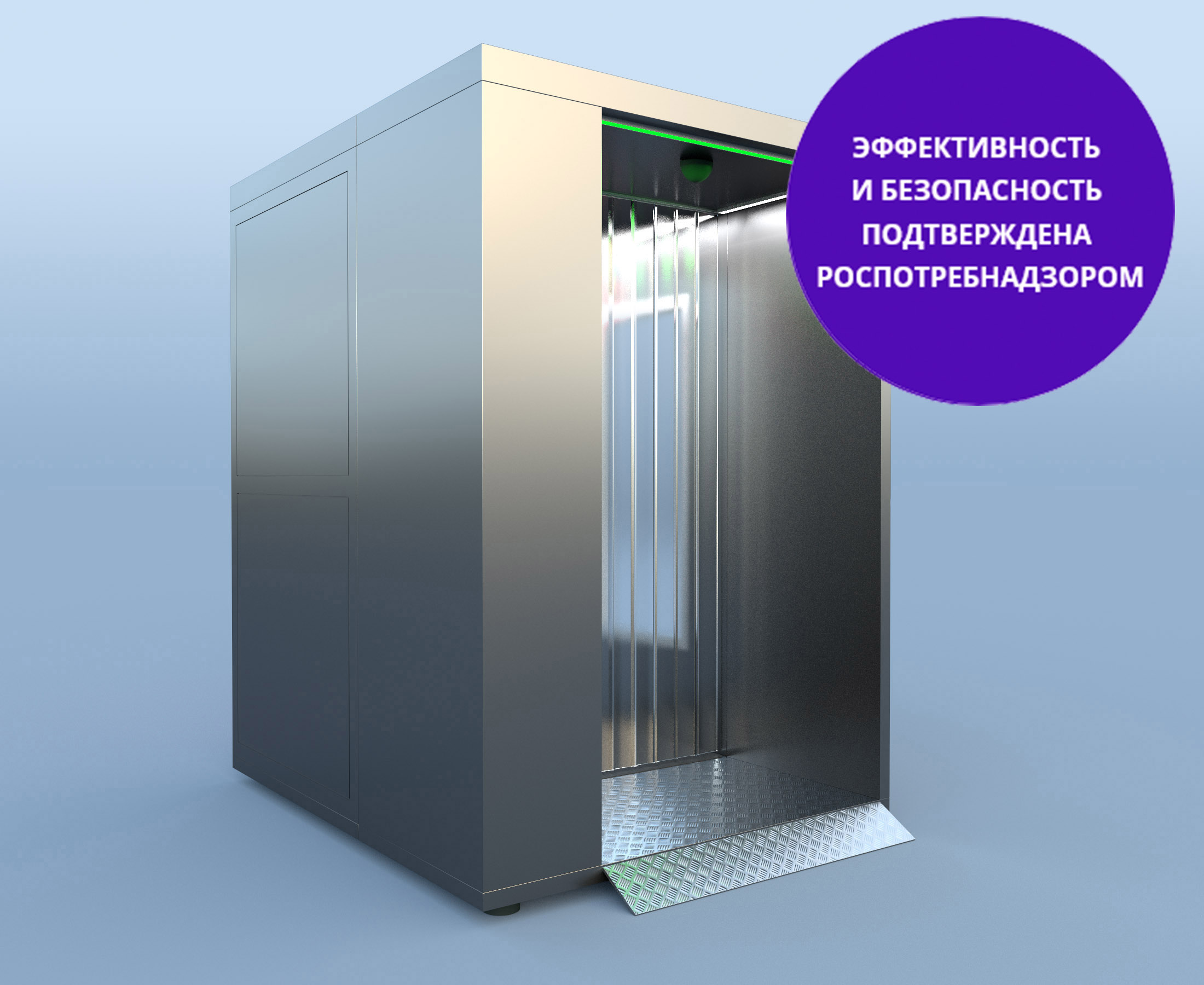

The mobile cabin is designed for effective treatment of people, their clothes and shoes with a fine disinfectant solution in the form of "cold fog".

The cabin is equipped with an electronic system for recognizing the intensity of the flow of people, motion sensors for switching on and off the generation of "cold fog", remote monitoring of the liquid level in the tank. The "cold mist" feed is located on the side panels with a condensate removal system. Structure the cabin is made of aluminum profiles and lined with aluminum composite, which allows you to withstand the effects of precipitation and maintain an aesthetic appearance


Model DG-1.1

Characteristics

  • overall dimensions of the post, mm 1450x2300x800 post weight 133 kg
  • Power consumption/voltage/frequency 600 W/220V/50 Hz
  • Dispersion adjustment from 3.5 to 100 microns
  • system pressure 60 bar
  • The capacity of the desolution tank is 55 liters
  • Liquid consumption per 1 person 8-10 ml
  • Processing time for the 1st person is 8-10 seconds
  • Capacity 250-300 people per hour
  • Time to enter operating mode no more than 5 seconds
  • The size of drops when spraying the solution is 2-4 microns
  • Execution - indoors
  • Operating temperature range from +5 to +40
  • Infrared temperature measuring device
  • hand sanitizer dispenser
  • Ramp
  • Mat




Model DG-2.1

Features

  • overall dimensions of the post, mm 1650x2400x1200 Weight of the post 174 kg
  • Power consumption/voltage/frequency 600 W/220V/50 Hz
  • Dispersion adjustment from 3.5 to 100 microns
  • system pressure 60 bar
  • The capacity of the desolution tank is 55 liters
  • Liquid consumption per 1 person 8-10 ml
  • Processing time for the 1st person is 8-10 seconds
  • Capacity 250-300 people per hour
  • Time to enter operating mode no more than 5 seconds
  • droplet size when spraying the solution 2-4 microns
  • Execution - indoors
  • Operating temperature range from +5 to +40
  • Infrared temperature measuring device
  • hand sanitizer dispenser
  • Ramp
  • Mat



Model DG-3.1

Features

  • overall dimensions of the post, mm 1650x2400x2000
  • Post weight 270 kg
  • Power consumption/voltage/frequency 600 W/220V/50 Hz
  • Dispersion adjustment from 3.5 to 100 microns
  • system pressure 60 bar
  • The capacity of the desolution tank is 55 liters
  • Liquid consumption per 1 person 8-10 ml
  • Processing time for the 1st person is 8-10 seconds
  • Capacity 250-300 people per hour
  • Time to enter operating mode no more than 5 seconds
  • droplet size when spraying the solution 2-4 microns
  • Execution - street
  • Operating temperature range from +5 to +40
  • Infrared temperature measuring device
  • hand sanitizer dispenser
  • Ramp
  • Mat




Model DG-3.2

Features

  • overall dimensions of the post, mm 1650x2400x1200 Weight of the post 174 kg
  • Power consumption/voltage/frequency 600 W/220V/50 Hz
  • Dispersion adjustment from 3.5 to 100 microns
  • system pressure 60 bar
  • The capacity of the desolution tank is 55 liters
  • Liquid consumption per 1 person 8-10 ml
  • Processing time for the 1st person is 8-10 seconds
  • Capacity 250-300 people per hour
  • Time to enter operating mode no more than 5 seconds
  • droplet size when spraying the solution 2-4 microns
  • Execution - indoors
  • Operating temperature range from +5 to +40
  • Infrared temperature measuring device
  • hand sanitizer dispenser
  • Ramp
  • Mat



Model DG-7.1

Features

  • overall dimensions of the post, mm 1260x2230x800
  • Post weight 90 kg
  • Power consumption/voltage/frequency 300 W/220V/50 Hz
  • Dispersion adjustment from 3.5 to 100 microns
  • method of applying the disinfectant – aerosol (dry mist), 4 nozzles
  • the volume of the disinfectant tank is 50 liters
  • Liquid consumption per 1 person 8-10 ml
  • Processing time for the 1st person is 8-10 seconds
  • Operating modes – automatic
  • Capacity up to 2500 people per hour.
  • Time to enter operating mode no more than 5 seconds
  • The size of drops when spraying the solution is 2-4 microns
  • Execution – indoors
  • Operating temperature from +5 to +40




Model DG-7.2

Features

  • DEZ GATE disinfection portal, model DG – 7.2 is equipped with:
  • overall dimensions of the post, mm 1260x2230x800
  • Post weight 90 kg
  • Power consumption/voltage/frequency 300 W/220V/50 Hz
  • Dispersion adjustment from 3.5 to 100 microns
  • method of applying the disinfectant – aerosol (dry mist), 4 nozzles
  • the volume of the disinfectant tank is 50 liters
  • Liquid consumption per 1 person 8-10 ml
  • Processing time for the 1st person is 8-10 seconds
  • Operating modes – automatic
  • Capacity up to 2500 people per hour.
  • Time to enter operating mode no more than 5 seconds
  • The size of drops when spraying the solution is 2-4 microns
  • Execution – indoors
  • Operating temperature range from +5 to +40
  • infrared temperature measuring device
  • hand sanitizer dispenser
  • safety curtains
  • non-slip Mat



Contactless processing

easyinstallation

easy
installation

highefficiency

high
efficiency

energyefficiency

energy
efficiency

highpassability

high
passability

strength anddurability

strength and
durability

Cabs are applicable to all types of seats


Hospitals


Exhibitions


School


Productions


Shopping center


Airports


The railway station


Hotels

Permits
